FUEL TANK RESTORATION

Integrated Piper Aircraft Fuel Tank Restoration Process
​

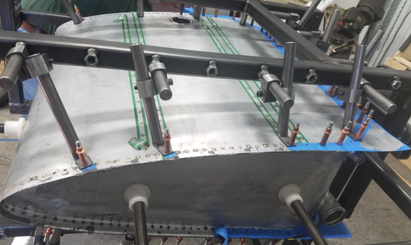

• Utilization of Custom Tank Alignment Fixture

  • Each fuel tank must be precisely reassembled to the exact specifications and alignment as when it was removed from the aircraft to insure proper fit upon reinstallation.


• Fuel Tank Disassembly Process

  • Installation of fuel tank into working fixture.

  • Fuel tank profile established and locked into fixture for eventual reassembly.

  • Careful removal of fuel tank from alignment fixture.

  • Inspection of fuel tank for damage, wear, and/or imperfections.

  • Precision removal of all original rivets.

  • Removal fuel gauges, drains, filler ports, vents, crossover fittings.

  • Removal of old sealant in order to separate tank components.

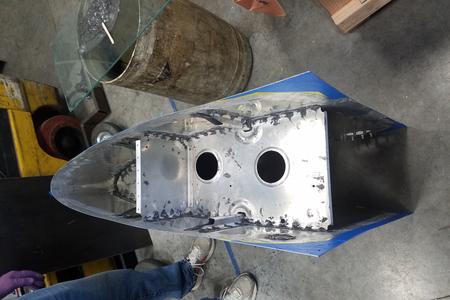

  • Removal of interior stiffeners and braces.

  • Separate, inspect, and categorize all tank components.

  • Painstakingly clean all aluminum surfaces of sealant and any original
    remaining debris.


• Inspection and Replacement of Damaged and/or
  Worn-out Components

  • Fuel sensor repair or replacement.

  • Inspection of fuel filler ports for proper material.

  • Replacement of all galvanized steel parts with stainless steel upgrades.

  • Customers will be notified of any discrepancies such as sending unit
    overhaul, filler neck replacement, or other services resulting in extra cost.


• Fuel Tank Assembly Process

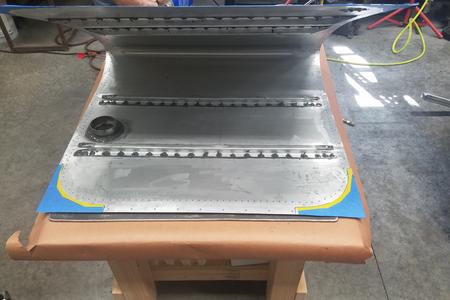

  • Reinstall and seal interior components prior to final reconstruction.

    • Braces and stiffeners

    • Fuel ports

    • Crossover fittings

    • Fuel vents

  • Mask off all surfaces required for precise reinstallation into aircraft.

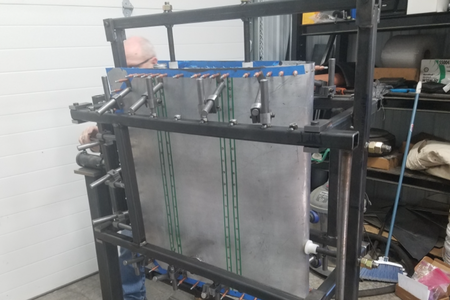

  • Install and position fuel tank into pre-aligned fixture.

  • Seal and temporally assemble tank for alignment inspection.

  • Systematically rivet tank together.

  • Remove fuel tank from fixture

  • Complete final riveting of original 26 fixture attachment points.

  • All tanks are pressure tested to factory specifications before
    shipping  and/or reinstalling. Lead times are approximately
    ​four weeks.


• Final Fuel Tank Sealing Process

  • Remove of any excess sealant.

  • Apply secondary bead of sealant on all exterior seams.

  • Reinstall inspected, repaired, or replaced fuel sensors.

  • Allow for the one-week sealant curing process.


• Fuel Tank Pressure Testing

  • Re-inspect fuel tank after sealant has cured.

  • Block all exterior ports and openings.

  • Pressurize fuel tank to aircraft manufacturer specifications.

  • Maintain and observe pressurization for 24 hours.

  • Clear all ports and openings.

  • Logbook recordation and reinstallation of fuel tank into aircraft.

• Pricing per tank starts at $1,455.00 per tank. Please Call 1(570)617-7754 for details.
